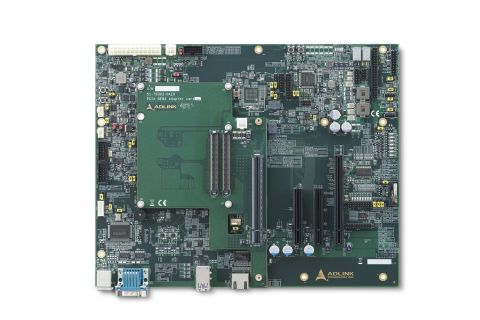

Express-BASE7 Plus

COM Express® Type 7 Reference Carrier Board in ATX Form Factor

The Express-BASE7 Plus is an ATX size COM Express Type 7 reference carrier board based on COM Express Rev 3.1. Together with the COM Express Type 7 R3.1 module of your choice and off the shelf add-on cards, you can quickly emulate the functionality of your desired end product for software development and hardware verification.

The Express-BASE7 Plus offers one PCIe x16 Express slot with 10GBASE-KR signals for 10GbE Adapter Card (10GbE SFP+ and 10GBASE-T, up to four ports) and additional RJ45 connector with up to 2.5GbE speed that can be used for data communication related application development. The optional NC-SI interfaces and Lite version IPMI BMC can be used for remote management related application development.

One PCI Express x16 Gen4 slot, two PCI Express x8 slots, Serial ATA, USB 3.0/2.0 can be used for the system development require many more peripherals.

A product by Adlink
