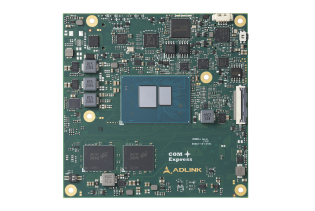

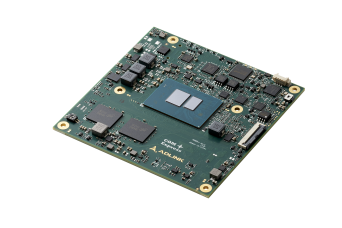

cExpress-ALN

COM Express R3.1 Type 6 Compact size Module with 7th Gen Intel® Atom® & N series Processors

The cExpress-ALN is a COM Express® COM.0 R3.1 Type 6 Compact size featuring 64-bit real-time-capable (with Intel TCC and TSN support) Intel® Atom™ processors (formerly “Alder Lake-N”). The cExpress-ALN is specifically designed for customers who need entry-level computing with real-time prowess, a balanced cost structure, and extended product life support.

The cExpress-ALN module supports up to 16GB LPDDR5 at 4800 MT/s with in-band ECC and one SO-DIMM to provide excellent responsiveness and performance. In addition, it can provide up to three independent displays, all of which can be DDI, LVDS, EDP, and/or VGA.

The module features a single onboard 2.5 GbE Ethernet port and up to eight physical PCIe Gen3 x1 ports, maximum four USB 3.2 ports (BOM option), eight USB 2.0 ports, and two SATA 6Gb/s ports.

All in all, with real-time capabilities, cExpress-ALN is your ideal solution for edge AI applications such as industrial automation robotics.

A product by Adlink
